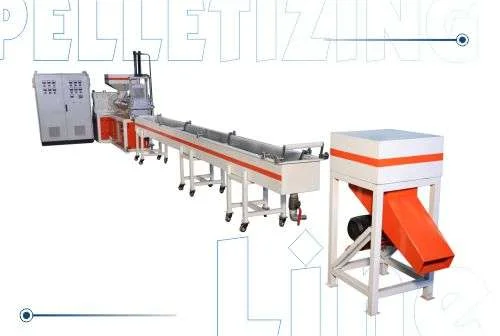

Single Stage Pelletizing Machine
This single stage pelletizing line is widely used for waste plastics. The material go through Melting System, Cooling System, Cutting System and Collect System will turn to be clean perfect pellets for reuse. You can choose double stage or single stage extruder according to the cleanliness of your material.
|MODEL||SCREW DIA (MM)||MOTOR (KW)||SCREEN CHANGER||OUTPUT (KG/HR)||CON. LOAD (KW)|
|JJ/90/SSPL||90||15||MANUAL||60 – 80||33|
|JJ/100/SSPL||100||22||HYDRAULIC||100 – 120||48|
|JJ/125/SSPL||125||30||✓||150 – 200||63|
|JJ/140/SSPL||140||45||✓||250 – 300||96|
|JJ/150/SSPL||150||75||✓||350 - 400||141|
